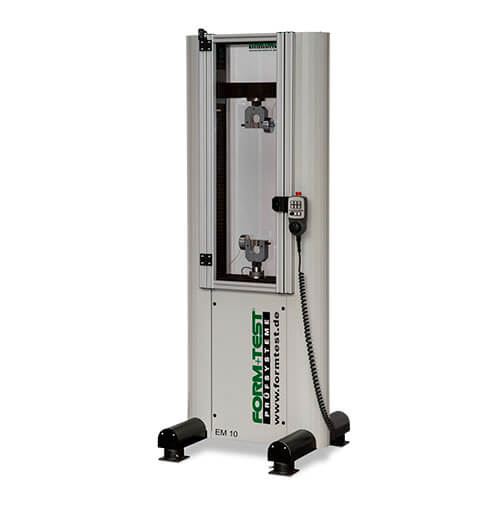

Universal Testing Machine Type EM

of Form+Test

Description

Universal testing machines of the EM series offer a wide range of test loads with graduated nominal forces between 5 kN – 1200 kN.

Size: Fnom: 5 – 1200 kN
demanding static and quasistatic tests in research/development and quality control
standard test pieces, components and parts in the destructive and non-destructive test range (e.g.: metals, elastomers, composites)
TENSILE-, COMPRESSION- and BENDING TESTS depending on accessories
flexible configuration

Description

Universal testing machines of the EM series offer a wide range of test loads with graduated nominal forces between 5 kN – 1200 kN.

Details

Buy online

Due to their modular design, they are suitable for tensile, compression and flexure tests as well as for universal testing with widely varying test requirements. Numerous other tests can be implemented with a very extensive range of accessories consisting of specimen grips and test fixtures. Special solutions for special testing tasks are quickly designed by our own development department and manufactured in-house.

Standards:

DIN EN ISO 7500-1: ASTM E4

Accuracy:

class 1 (0.5 optionally) according to DIN EN ISO 7500-1: ASTM E4

Configuration:

Frame: modern design considering the ergonomic needs of the operator; very rigid two-room test frame for flexible tests
Drive: powerful, maintenance-free, digitally controlled electromechanical drive; pre-stressed ball screws, free from play
Hand Wheel: for the manual drive of the test cylinder – steplessly adjustable movement speed
Force Measurement: strain gauge force transducer for tensile and compressive forces – optionally mounted on the piston rod or on the baseplate
Options / Accessories: broad range of specimen holders, tensioning equipment, compression plates, bending tables, T-slot tables, transport devices, climate chambers, protective equipment and integrated operating elements
