For fixed Installations where High Accuracy is required
High stability Ice Point Reference to get the highest thermocouple accuracy and minimize cold junction errors

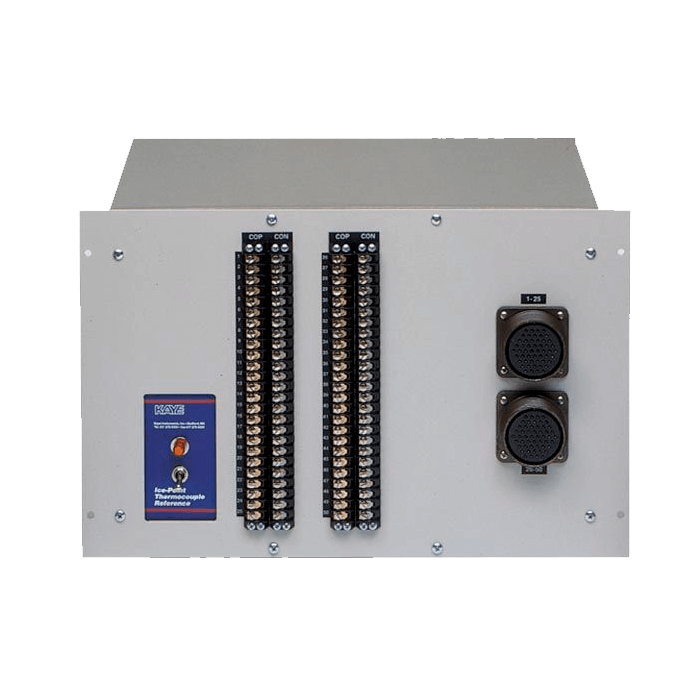

The K170 Ice Point Reference performs ice point referencing for up to 75 thermocouples. The user wires external thermocouples to the unit’s input terminals which are in turn connected to matching internal TC’s that terminate to copper at the temperature of a thermoelectrically produced ice-water mixture. Thermocouple grade copper wire is taken from ice to MIL style or quick disconnect connectors for output terminations
For fixed Installations where High Accuracy is required
High stability Ice Point Reference to get the highest thermocouple accuracy and minimize cold junction errors
The K170 Ice Point Reference performs ice point referencing for up to 75 thermocouples. The user wires external thermocouples to the unit’s input terminals which are in turn connected to matching internal TC’s that terminate to copper at the temperature of a thermoelectrically produced ice-water mixture. Thermocouple grade copper wire is taken from ice to MIL style or quick disconnect connectors for output terminations
Configurable in 6, 12, 24, 36, 50, or 75 channels
Screw Terminal inputs / MS or QD output connections
Optional shielding or calibration
Jet Engine Test Stands
Power Plants
High Speed Data Acquisition System
