Scratch Hardness Coating
Tester NOVOTEST SH-1518


Materials Analysis Coating Analysis / Measurements Coating Thickness Gauges

Coating Thickness Gauges

  • Coating Thickness Gauges Novotest-SH-1518-mcscorpusa

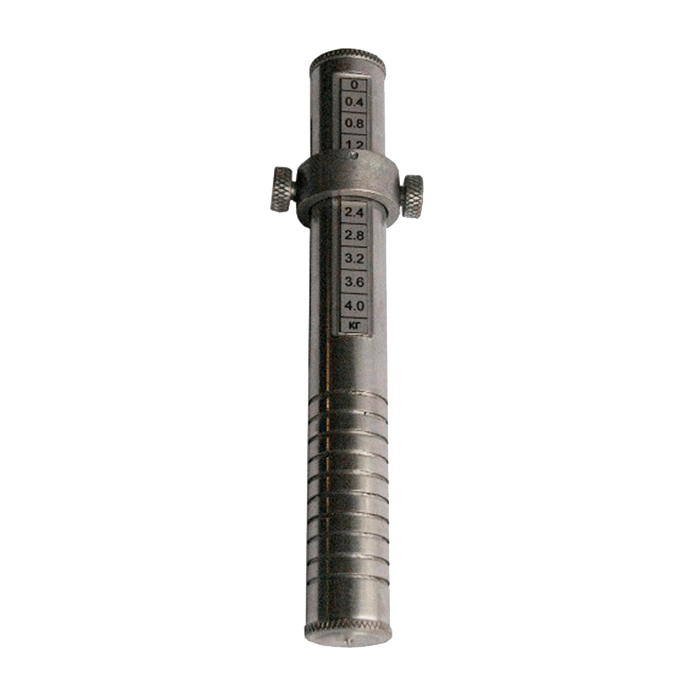

Scratch Hardness Coating Tester SH-1518

of Novotest

Description

Scratch Hardness Coating Tester NOVOTEST SH-1518 (ball type) is used for hardness testing of coatings (paint, mastic, plastic and others) through determining the hardness resistance to indentation of the ball tip diameter of 1 mm. Scratch Hardness Coating Tester NOVOTEST SH-1518 is designed according to ISO6441. Also it is used for testing of the coating resistance to the  scratching (ISO1518).

The device can be used on uneven surfaces, surfaces with curvature and limited sizes.

The device has lightweight and can be carried in the pocket, which allows users to use it even during manufacturing processes.

Features

  • Device has small weight and size, so it is very convenient in daily operation. Also it has very simple and reliable design.

Request quote

Suscribe

Description

Scratch Hardness Coating Tester NOVOTEST SH-1518 (ball type) is used for hardness testing of coatings (paint, mastic, plastic and others) through determining the hardness resistance to indentation of the ball tip diameter of 1 mm. Scratch Hardness Coating Tester NOVOTEST SH-1518 is designed according to ISO6441. Also it is used for testing of the coating resistance to the  scratching (ISO1518).

The device can be used on uneven surfaces, surfaces with curvature and limited sizes.

The device has lightweight and can be carried in the pocket, which allows users to use it even during manufacturing processes.

  • Device has small weight and size, so it is very convenient in daily operation. Also it has very simple and reliable design.
Coating Thickness Gauges Novotest-SH-1518-mcscorpusa
Other features
Data Sheet
Buy online

Indenter ball tip with 1 mm diameter
The load range, F up to 2,5 kg (with steps 0,2 kg) – model 1
Operating temperature range -10 ° C to +40 ° C
Total length 160 mm
Diameter 16 mm
Weight, net: approx. 0,25 kg

Catalogue NOVOTEST 2016 (English)
