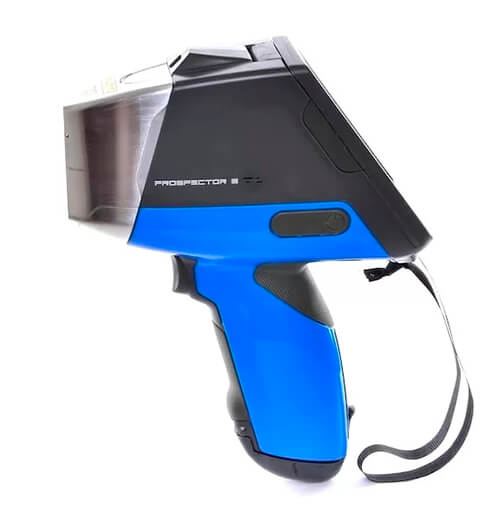

ProSpector 3

Benefits

• World’s fastest XRF analyzer (throughput above 500 000 cps – more than twice as fast as any other handheld XRF) – highest accuracy within the shortest measurement time, excellent precision
• World’s smallest (236 х 193 х 68 mm), and lightest (1.05 kg with a battery) handheld analyzer – easy to operate
• Dustproof and waterproof instrument body, with IP-67 ingress protection rating – ProSpector 3 can be operated even under water!
• Automatic collimator changer for small spot analysis of jewelry, welds etc.
• Folding display – for easy operation in the lab stand without connecting to a PC
  Highest mobility – up to 16 hours of autonomous operation on a single battery charge, hot battery swap
• Superior calibration stability, compensation of influence of ambient temperature and pressure variations – no need to spend time for calibration
• Two CCD cameras for macro- and micro- view
• Scanning barcodes (commodity EAN and UPC codes, QR codes, book ISBN codes, Databar, Codabar, etc.) that contain information about the sample: name, number, code, etc.
• Full compatibility with ElvaXTM PC software
• Radiation safety: proximity sensor and low count rate detection

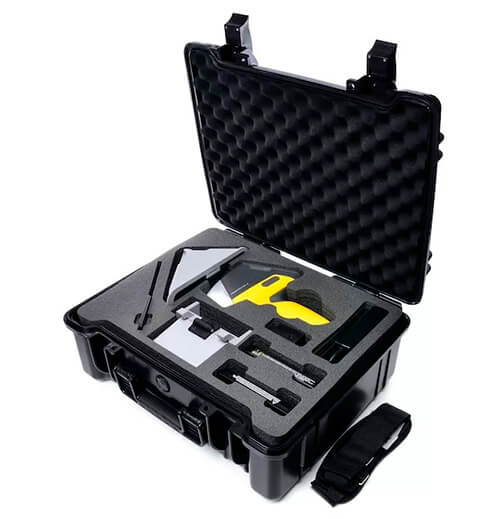

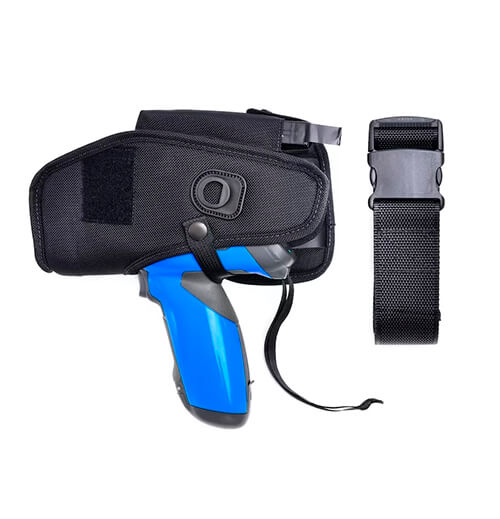

• Great choice of accessories for comfortable work.

Data can be transferred from ProSpector 3 to a PC directly via USB, WiFi or Bluetooth connection. MicroSD socket is also available for data storage and transfer. The detector shield protects detector Be window, the most fragile part of the instrument, from being punctured by sharp objects like wires, shavings etc.

Applications

• PMI
• RoHS and Weee
• Precious metals
• Alloy
• Mining and Exploration
• Soil and sediment
• Environmental monitoring
• Scrap sorting
• Clays and Oxyde
• Lead in paint
• Car catalyst
• Archeometry
• Forensics

Digital X-Ray Source digiX-50

Anode: Rh, W
Voltage: 50 kV
Current: 200 uАmp
Power: 5 W
8 positions filter changer
2 position collimator changer

Electronics

DPP: proprietory DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate
MCA: 4096 channels
Display: 4.3″
Connectivity: USB, Bluetooth, Wi-Fi
2 high-resolution video cameras

X-Ray Detector

Type: SDD
Area: 10, 30, or 40 mm 2
Energy resolution: <140 eV @ 5.9 keV
Count rate: 500,000 cps

General

Dimensions: 236 х 193 х 68 mm
Weight: 0.82 kg, 1.05 with battery kg
Protection: IP67

Software

Operating system: Windows EC7
Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations

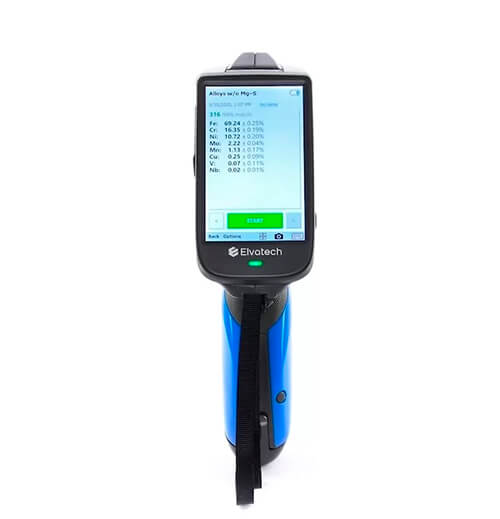

Large folding display

ProSpector 3 has the largest touch screen (4.3”) available in hand-held XRF analyzers. All the required data is shown without scrolling. The unique design of the folding display allows for convenient operation in the lab stand with no need to use an external PC. Image autorotation lets you operate the analyzer both in the horizontal and vertical position.

Small spot analysis

High-resolution CCD camera combined with an automatic collimator changer offers simple positioning and small spot analysis of jewelry, welds, PCBs, etc.
