Flexible – easy to use from -50°C to 200°C; 24 Sensor Capacity
The Kaye LTR-200 is a multi-purpose Temperature Calibrator specifically designed to address the capacity and flexibility needs for thermal validation. This essential Temperature Calibrator utilizes its ability to perform Temperature Calibration on up to 24 thermocouples. Due to hybrid technology, the LTR-200 Temperature Calibrator saves hours of time and effort when calibrating or verifying validation Temperature Sensors.

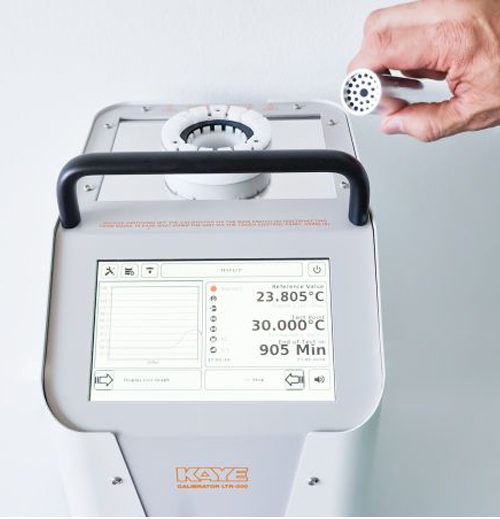

The thermocouple fixture is seamlessly integrated into the well of the Temperature Calibrator. They guarantee easy handling of up to 24 TCs, ensuring that all the Temperature Sensors are securely held at full immersion depth during the Temperature Calibration process.
Notably, the LTR-200 Temperature Calibrator is backward compatible with the Kaye Validator AVS, Kaye Validator 2000, Kaye ValProbe or Kaye ValProbe RT software. This allows the Temperature Calibrator to provide automatic sensor calibration. Additionally, this versatile Temperature Calibrator is ideal for calibrating RTDs as well as a range of other process Temperature Sensors.
These features make the LTR-200 Temperature Calibrator a perfect tool not only for the Temperature Calibration in a lab but also for various broader mobile validation needs. In conclusion, the LTR-200 Temperature Calibrator is a robust and versatile multi-purpose device that caters to all your Temperature Calibration needs.
Flexible – easy to use from -50°C to 200°C; 24 Sensor Capacity
The Kaye LTR-200 is a multi-purpose Temperature Calibrator specifically designed to address the capacity and flexibility needs for thermal validation. This essential Temperature Calibrator utilizes its ability to perform Temperature Calibration on up to 24 thermocouples. Due to hybrid technology, the LTR-200 Temperature Calibrator saves hours of time and effort when calibrating or verifying validation Temperature Sensors.
The thermocouple fixture is seamlessly integrated into the well of the Temperature Calibrator. They guarantee easy handling of up to 24 TCs, ensuring that all the Temperature Sensors are securely held at full immersion depth during the Temperature Calibration process.
Notably, the LTR-200 Temperature Calibrator is backward compatible with the Kaye Validator AVS, Kaye Validator 2000, Kaye ValProbe or Kaye ValProbe RT software. This allows the Temperature Calibrator to provide automatic sensor calibration. Additionally, this versatile Temperature Calibrator is ideal for calibrating RTDs as well as a range of other process Temperature Sensors.
These features make the LTR-200 Temperature Calibrator a perfect tool not only for the Temperature Calibration in a lab but also for various broader mobile validation needs. In conclusion, the LTR-200 Temperature Calibrator is a robust and versatile multi-purpose device that caters to all your Temperature Calibration needs.
Dry block inserts are designed to accommodate thermocouples, IRTD, as well as ValProbe (RT) flexible / bendable probes
Special TC fixture for easy handling of up to 24 thermocouples
Software interface compatible with all existing Kaye products, including IRTD, Validator 2000, Validator AVS and ValProbe (RT), enabling automatic / manual calibrations
User-friendly touchscreen interface
Universal power supply 100 – 240 VAC / 50 – 60 Hz
Additional inserts available for calibrating specialty or process probes
The LTR-200 is a multi-purpose temperature calibrator used for applications ranging from -50°C to 200 °C such as:
Autoclave
Steam-in-Place
Freezer/ Fridge
Incubators
| Specifications Model Control Sensor |
LTR-200 |
| Dry Block | |
| Temperature Range* | -50°C to 200°C (-58°F to 392°F) |
| Accuracy | ±0.1°C (±0.18°F) |
| Stability | ±0.010°C (±0.018°F) |
| Uniformity | 0.1 °C (±/- 0.18°F) |
| Heating/Cooling time | 25°C to 140°C 7 minutes 25°C to 200°C 10 minutes -50°C to 25°C 7 minutes 140°C to 25°C 13 minutes 25°C to -50°C 27 minutes |
| Block Dimensions | |
| -> Diameter | Ø 27.7 mm (Ø 1.09 in) |
| -> Depth | 136 mm (5.38 in) |
| Display Unit | |
| Display | 7” Color-Touchscreen Unit °C / °F / K |
| Resolution | 0.1 / 0.01 / 0.001 °C / °F / K |
| General Data | |
| Interface | Serial to Validator / Ethernet / 3 X USB |
| Dimensions | 210 mm x 300 mm x 380mm |
| Weight (approx.) | 16 kg / 35 lbs |
| Power Supply | 100 – 240 VAC, 50/60Hz |
| Power Consumption | 550 W |
* at an ambient temperature of 20°C / 68°F
