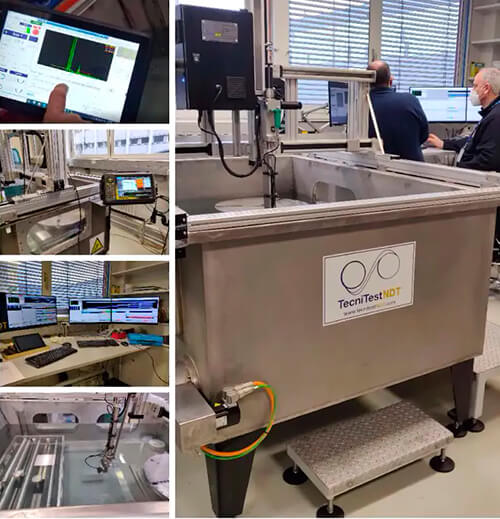

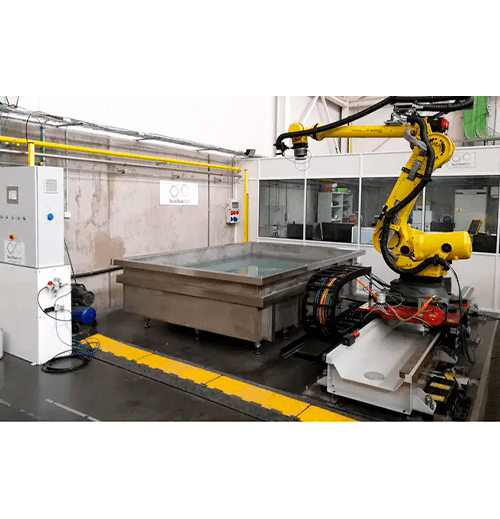

Immersion Tanks

Mechanics

Stiff extruded free standing aluminium frame (black panel covered).
Belt and/or ball bearing drive axis with position accuracy better than ±0.1 mm depending on the size of the tank and the accuracy required.
Independent Perspex or Stainless-Steel tank, depending on the size of the tank.
Bottom glass with adjustable supports for double through transmission tests.
Interchangeable probe holder, manually adjustable (0º-90º XZ or YZ) and additional fine adjustment of relative probe position.
Scanning speed up to 500 mm/s (linear axis X, depending on the actual total length).
Optional: external axis (turn) attachment and support (Z or X direction).
From two up to eight motorized axes (standard), expandable. Axis with traction through pinion, rack, or belt.
High accuracy movement to ± 0.1mm with a minimum index of 0.1mm
Optional contour following equipment.

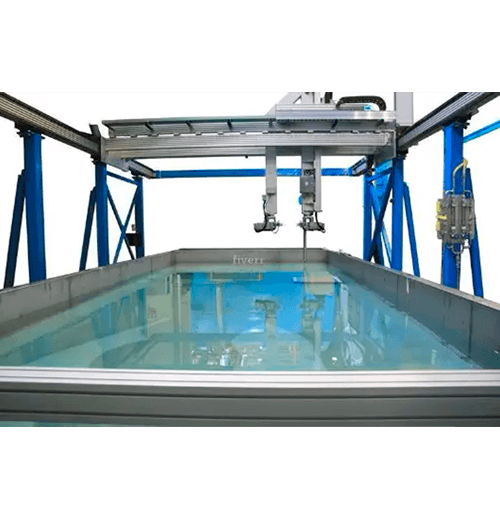

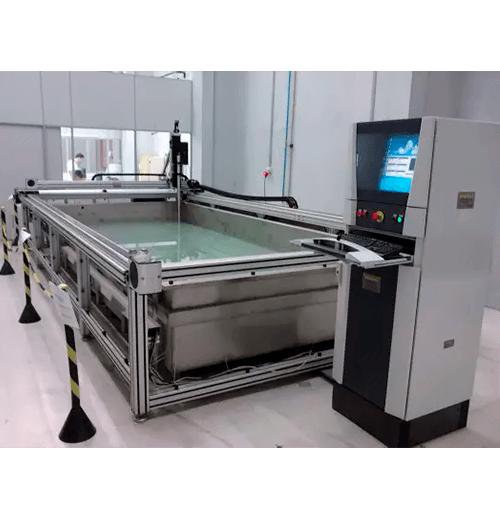

The Triton range of systems comprises a series of immersion tanks for ultrasonic inspection with the following standard dimensions (scan lengths) … different dimensions, up to 15 m length (X axis) and specific requirements can be considered, with the universal characteristics and details referred to below:

Electronics

Electronic controller-based commercial industrial PLC commanded by an independent computer. This architecture enables updating the computer operating system and programs easily and ensures that the movement of equipment is made more reliable and secure.
Encoders in X and Y axes for acquisition synchronization (also θ when an external axis is available).
Desktop PC (optionally, in industrial rack).
Low noise electronics for ultrasonic acquisition including a socket box on the system bridge frame.
Control switches, safety system and emergency stop button.
Control of movement made by commercial equipment to facilitate maintenance.
Index adjustable from 0.1mm (depending on model)
Programmable speed to 500 mm / s.
Possibility of inspection in various planes.

Ultrasonic equipment

The systems that we manufacture are the same design, but each customer has their own specific needs. As such we try to accommodate our customers and therefore, we incorporate the best ultrasonic equipment to suit the customers’ needs. Doing this we ensure that the customer receives the latest technology available.

Sonatest DFDs can also be used with this equipment. The customer may also specify a DFD or indeed any Phased Array Equipment that he wishes to use providing that there are digital outputs to enable us to generate a C-Scan and the relevant data to be able to produce A-Scans and B-Scans.
Depending on the choice, particular capabilities and features of the system shall be defined in terms of dynamic range, number of channels, available real time presentations in high speed tests, etc.

R&D-Production environment

Naval Engineers Faculty –Technical University of Madrid
Carlos III University- Leganés (Madrid)
Acoustic Lab, CSIC Madrid (RETROFIT)
CARTIF Valladolid
Ultrasonic probes calibration, R&D Airbus Operations SL (RETROFIT)
Instituto Madrileño de Estudios Avanzados, IMDEA Madrid
Moscow Power Engineering Institute (Technical University), National Research Center Short name: MPEI (TU)
Aerospace Innovation Center, Beijing, China
FIDAMC (Fundación para la Investigación, Desarrollo y Aplicación de los Materiales Compuestos), Tecno-Getafe, Madrid
Imperial College of London, Department of Aeronautics
Aries Complex-Aciturri group (Composite parts inspection)
ICSA Toledo-Aernnova group (Composite parts inspection)
Mecatecnic_Alestis group (Composite parts inspection)
Aresa-Aciturri group (Composite parts inspection)
Constructora y Auxiliar de Ferrocarriles CAF (Train axle inspection) (RETROFIT)
APPLUS LGAI Madrid (Composite parts inspection)

VisualScan is a dedicated application software for automatic ultrasonic inspection systems under MS Windows 10, easy to operate and intuitive… at the same time complying with requirements of common application standards (Airbus, for inspection of composite materials).

Key Benefits:

Software of system based on Windows.
Software up datable by via Internet.
Friendly interface easy to use.
Fast programmability for self-learning.
A-SCAN and C-SCAN in real time on screen.
Programmable Speed and Index
Creation of bitmap files.
Complete file of inspection data.
Sending of results through Internet.
Evaluation in real time by local network

It’s optimized design and suitable integration with the system mechanics and electronics, it can control the system and the inspection with the best performance regarding scanning speeds, setup options and quality of the results.
