Thermal Validation & Environmental Monitoring LTR / HTR Dry Blocks

HTR-420

of KAYE

Description

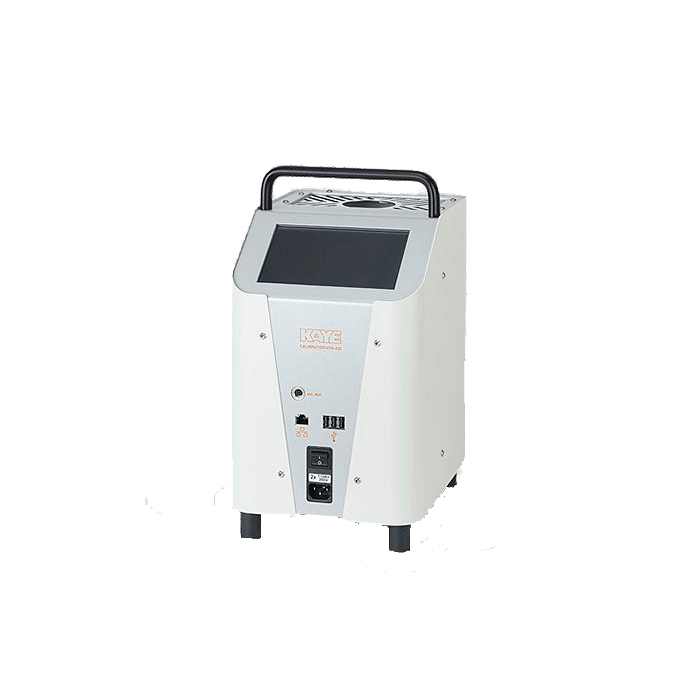

Dry Block Temperature Calibrator flexible – easy to use (30 to 420°C)

The Kaye HTR-420 is the most advanced high temperature calibrator specifically designed to address the capacity and flexibility needs for thermal validation. The HTR-420 is able to calibrate 48 thermocouples at one time and saves hours of time and effort when calibrating or verifying validation sensors. The new Dry Block Temperature Calibrator is backward compatible with the Validator 2000, Validator AVS, ValProbe or RF ValProbe software for automatic sensor calibration or can be used stand-alone via it’s easy to use touch screen display.

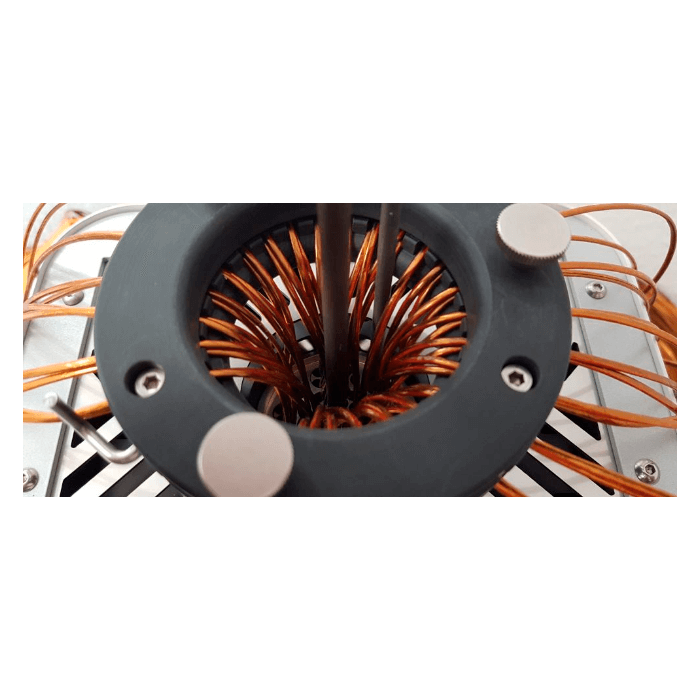

The new Thermocouple Fixture guarantees easy handling of up to 48 TC’s ensuring that all are securely held at full immersion depth

Features

Operating range of 30 to 420°C with temp stability of up to 0.01°C and uniformity of up to 0.1°C
Fast Heating and Cooling times
Calibration of up to 48 thermocouple with Dry Block insert savings hours of time
Dry Block inserts are designed to accommodate thermocouples, IRTD, ValProbe flexible/bendable as well as RF ValProbe probes

Description

Dry Block Temperature Calibrator flexible – easy to use (30 to 420°C)

The new Thermocouple Fixture guarantees easy handling of up to 48 TC’s ensuring that all are securely held at full immersion depth

Operating range of 30 to 420°C with temp stability of up to 0.01°C and uniformity of up to 0.1°C
Fast Heating and Cooling times
Calibration of up to 48 thermocouple with Dry Block insert savings hours of time
Dry Block inserts are designed to accommodate thermocouples, IRTD, ValProbe flexible/bendable as well as RF ValProbe probes

Kaye HTR-420 Dry Block and Liquid Bath mcscorpusa

Other features

Applications

Data Sheet

Buy online

Representation

Software interface for all existing Kaye products (IRTD, Validator 2000, Validator AVS, ValProbe and RF ValProbe software for automatic / manual calibrations
Easy to use touch screen
Universal Power Supply 100 – 240 VAC / 50 – 60 Hz
Addition inserts available for calibrating specialty or process probes

The Kaye HTR-420 is the most advanced high temperature calibrator specifically designed to address the capacity and flexibility needs for thermal validation.
