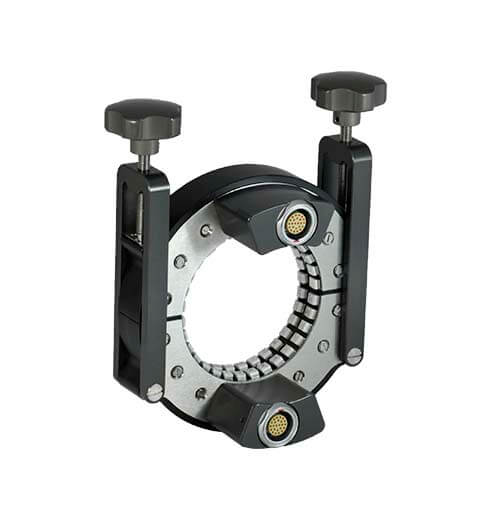

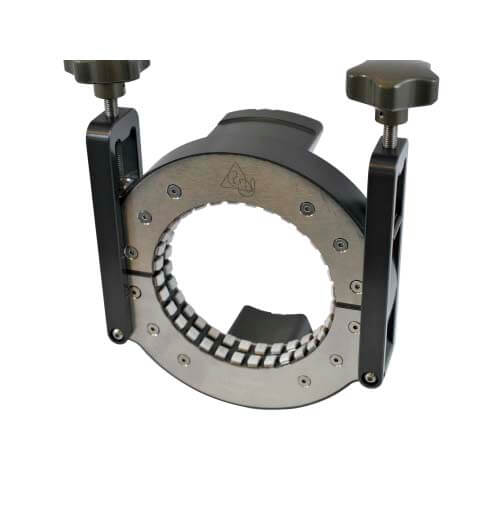

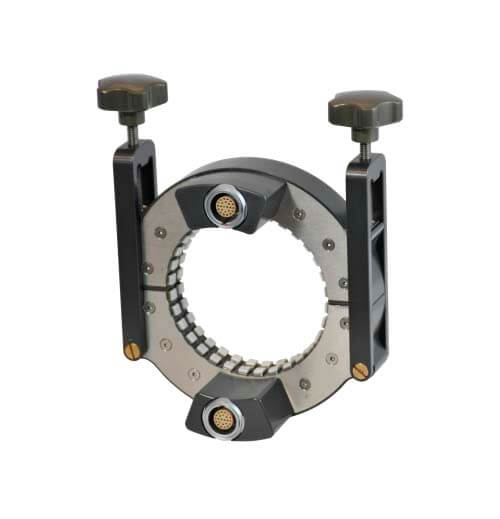

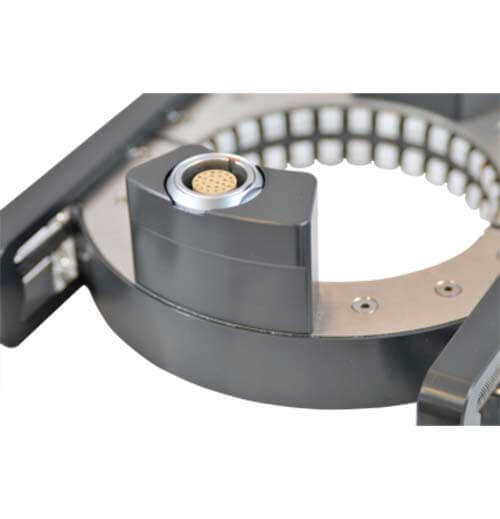

The High Definition (HD) solid ring has been developed to utilise the high-frequency range available with the Wavemaker® G4 (with MF Option) and G4mini for applications where higher sensitivity and resolution are required on small diameter pipes. Such applications typically include interface penetrations, supports and localised pitting.
The High Definition (HD) solid ring has been developed to utilise the high-frequency range available with the Wavemaker® G4 (with MF Option) and G4mini for applications where higher sensitivity and resolution are required on small diameter pipes. Such applications typically include interface penetrations, supports and localised pitting.
Spring-loaded transducer ring for inspection of pipes with up to 6” diameter at a high frequency range. Key application areas include:
Similar to HD solid ring but specifically designed to inspect higher temperature pipes (< 350°C). Key application areas include:
| HD | HD-HT | |
| Number of Channels | 16 (optionally 8 channels) | |
| Nominal Pipe Sizes | 3″, 4″, 6″ (DN 80 to 150)* For 2.5″ & under check Claw Transducers | |
| Radial Clearance | 50mm (2″) | |
| Required Electronics | Wavemaker® G4 (with MF option) and G4Mini (Fully Loaded) | |
| Temperature Range | -40°to +150°C (300°F) | -40°to +350°C (660°F) |
