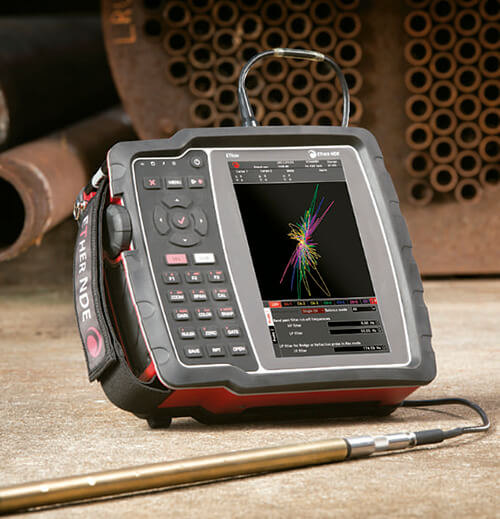

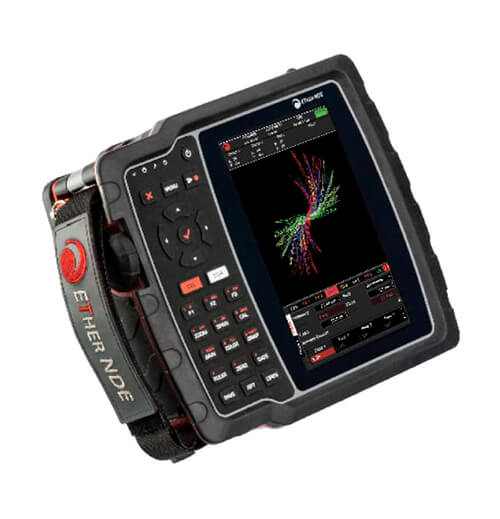

The ETi-200 is an advanced Eddy Current Flaw Detector from ETher NDE. The ETi-200 is designed to offer advanced multi-frequency and multi-channel flaw detection housed in the smallest portable EC package on the market.
Rugged instrument with cast aluminium frame, rubber over-moulding and ergonomic design
Great battery life (5.5 hours) with “quick swap” batteries
Removable Eddy Current Cartridge allows easy future upgrades and enhancements
Excellent analogue performance
Advanced Software including signal mixing functions, measurement cursors, configurable alarms and auto-load
The ETi-200 is an advanced Eddy Current Flaw Detector from ETher NDE. The ETi-200 is designed to offer advanced multi-frequency and multi-channel flaw detection housed in the smallest portable EC package on the market.
Rugged instrument with cast aluminium frame, rubber over-moulding and ergonomic design
Great battery life (5.5 hours) with “quick swap” batteries
Removable Eddy Current Cartridge allows easy future upgrades and enhancements
Excellent analogue performance
Advanced Software including signal mixing functions, measurement cursors, configurable alarms and auto-load
Appealing to all sectors within NDT, the ETi-200 allows the Operator to programme not only frequency, but many other advanced functions. With single-Probe operation, the ETi-200 can multiplex eight Channels, making the ETi-200 the most flexible portable unit available. Alternately with two Probes connected the ETi-200 allows any mix of eight channels across two Probes.
Powerful & Compact
Weighing just 2.8kg (6.2lbs) with a compact footprint, the ETi-200 offers the user more advanced features than any equivalent unit. Designed with end users and the inspection environment in mind, the ETi-200 includes an adjustable hand-strap, harness attachment points and meets the IP54 standard making it splash and dust proof.
Large High Definition Display
The ETi-200 has an impressive 7” diagonal 800 x 480 pixel colour TFT display. Colours on the display are user-programmable and menus incorporate feature friendly icons. The display can presents with one, two or four panes. Each pane can in turn have any channel displayed on it in different colours.
State of the Art Communications and Data Storage
The ETi allows USB peripherals (memory stick, mouse, keyboard) to be connected; i.e. USB “on-the-go” and features an Ethernet port for software upgrades and future functions and a full-size 32Gb SD Card slot. At a 25k sample rate, the ETi-200 can store as much as 48 hours of continuous live recordings.
| Part # | Item |
|---|---|
| KIETI002 KIT, ETi 200 – two channel, eddy current flaw detector. Kit includes: | |
| IETI002 | Instrument. ETi 200 – 2 channel eddy current flaw detector, multi-frequency 10Hz – 15 MHz, Gain 0-100db, LEMO 12-way, manual on USB Stick and carry strap |

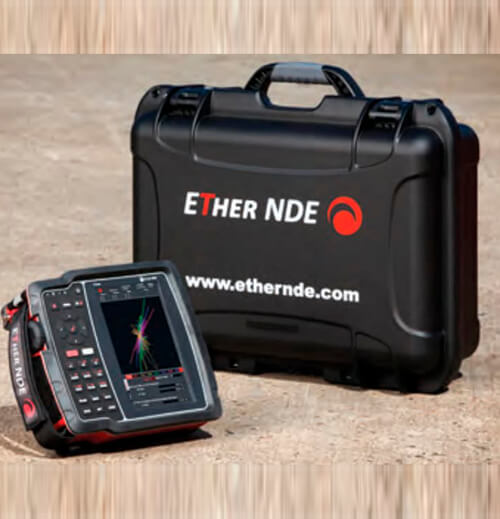

| AETI001 | Accessory, hard transit case with foam inserts |
| AETI002 | Accessory, ETi 200 AC power adapter (class 1 triangular connector) Input: 100 – 240V, 47-63Hz, 1.2A max output: 24V 3.75A |
| A123 | Lead, Micro-B USB OTG cable, 10cm |
| 40357 | ETi Quick Reference card |
| AMXXX | Accessory: Mains lead, 2m, class 1 triangular connector, (as per country of destination) |
| ALL12-L04-015R | Accessory: Lead, LEMO 12-way – LEMO 4 way, 1.5m (Reflection) |
| ALL12-L04-015B | Accessory: Lead, LEMO 12-way – LEMO 4 way, 1.5m (Bridge) |
| ALLCX-M02-015A | Accessory: Lead, LEMO 00 to Microdot, 1.5m |
| ALLCX-B02-015A | Accessory: Lead, LEMO 00 to BNC, 1.5m |
| AALCX-B02S | Accessory: Adapter, LEMO 00 o BNC jack (short) (LEMO 00 to BNC) |
Accessories
| Part # | Item |
|---|---|
| AM001 | Accessory, Mains Lead, UK plug, 2m, 250V, 2.5A (class 1 triangular connector) |
| AM002 | Accessory, Mains Lead, European plug, 2m, 250V, 2.5A (class 1 triangular connector) |
| AM003 | Accessory, Mains Lead, USA plug, 2m (class 1 triangular connector) |
| AM004 | Accessory, Mains Lead, AUS plug, 2m (class 1 triangular connector) |
| AM004 | Accessory, Mains Lead, Japan plug, 2m (class 1 triangular connector) |
