ElvaX Pro

Benefits

• World’s fastest XRF analyzer (throughput above 500 000 cps) – highest accuracy and excellent precision within the shortest measurement time
• 60 kV X-ray tube voltage allows to analyze rare earth elements using K-series and consistently improves sensitivity to the high-energy elements from Pd (Z=46) to Ba (Z=56)
• Up to 1000 μA X-ray tube current improves accuracy and detection limits for light elements (Na, Mg, Al, Si, P, S) and allows to use small-size collimators (<1mm) for small spot analysis
• Motorized collimator changer for small spot analysis of jewelry, welds etc.
• Helium purge feature improves sensitivity to light elements (Na, Mg, Al, Si, P, S) several times
• 16-position automatic sample changer increases the productivity of your lab
• Sample spinner for analysis of inhomogeneous samples
• Excellent calibration stability, compensation of ambient temperature and pressure influence
• High-resolution CCD camera for precise sample positioning

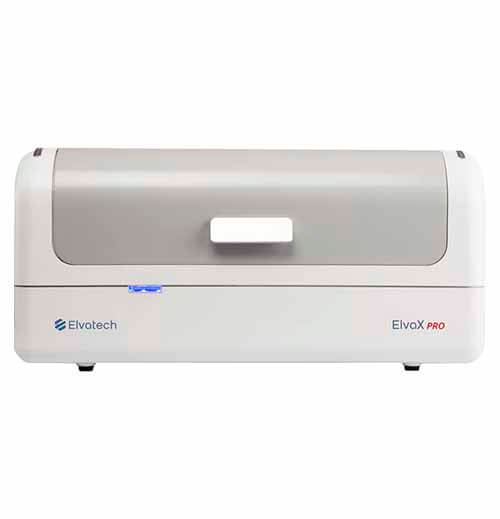

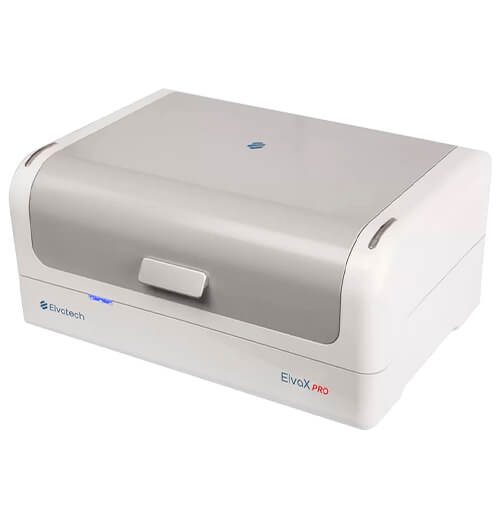

ElvaX Pro is the most powerful EDXRF spectrometer among the ElvaX Family for the most demanding users. It offers excellent performances for the light elements analysis, as well as for the high energy elements including the rare earth.

Applications

• PMI
• RoHS and Weee
• Alloy
• Sulfur in Oil
• Mining and Exploration
• Soil and sediment
• Environmental monitoring
• Cement
• Clays and Oxyde
• Archeometry

Digital X-Ray Source digiX-60

Anode: W, Rh, Ag
Voltage: 60 kV
Power: 12 W
8 position filter changer
5 position collimator changer

Electronics

DPP: proprietory DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate
MCA: 4096 channels

X-Ray Detector

Type: Large area Fast SDD
Area: 40 mm2
Energy resolution: 130 eV at Mn Kα, 85 eV at Al Kα
Count rate: 500 000 cps

General

Dimensions: 430 х 340 х 200 mm
Weight: 18 kg
Power supply: 90 – 240 V, 50/60 Hz
Power consumption: 50 W

Software

Operating system: Windows XP/Vista/7/8/10
Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations, Manual spectra comparison

Improved Light Elements Capabilities

ElvaX Pro offers excellent precision, lowest detection limits for the light elements such as Na, Mg, Al, Si, P, S due to the high anode current (1000 uAmp) X-ray tube and the helium purge feature

Small Spot Analysis

The high resolution CCD camera combined with the automatic collimator changer offers simple positioning and local analysis of jewelry, welds and small objects. The powerful X-ray tube and ultra large Fast SDD provide high count rate and short measurement time even with collimators less than 1 mm.

Rare Earth Elements

The high-voltage 60 kV X-ray tube allows analyzing elements, which could not be measured before by using K-lines: La, Ce, Pr, Nd, Pm, Sm, Eu, Gd.

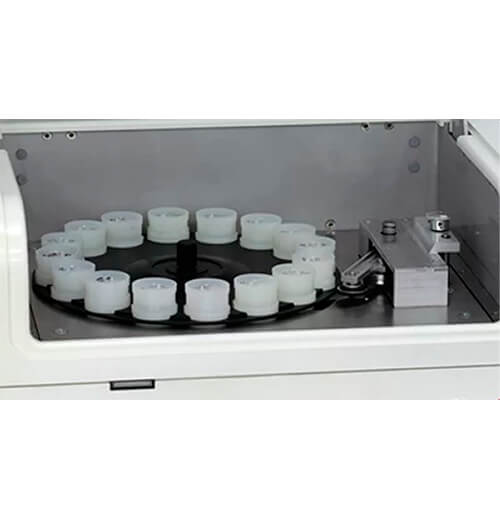

Sample Changer

The automatic 16-positions sample changer coupled with the fast measurement increases the productivity of your lab up to 1000 samples per workday.
