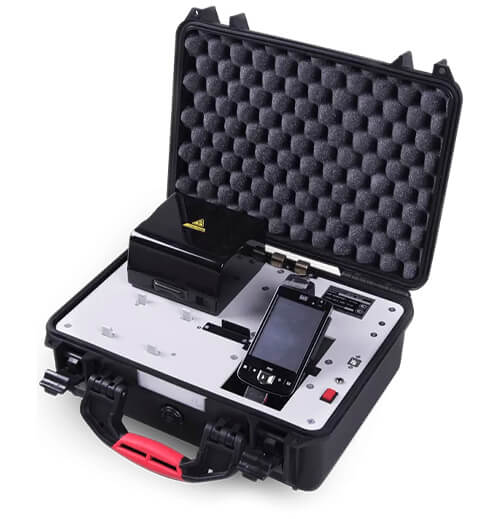

ElvaX Mobile is a portable EDXRF analyzer for testing a wide variety of materials. The sampling tray, similar to a benchtop instrument, allows the convenient placement of XRF sample cups. The high-resolution SDD detector and large measurement spot ensure a high count rate, crucial for quick detection of trace elements. The ElvaX Mobile is a perfect tool for testing soil and petrochemicals or any other applications where testing liquids and powders are required on site. The PDA integrated into the instrument has an intuitive interface as well as a bright, high-resolution screen. ElvaX Mobile can be synchronized with a desktop computer via USB, Wi-Fi or Bluetooth. The instrument is as light and easy to carry as an ordinary briefcase. All you need is a flat surface to put it on and it’s ready for work in seconds.
ElvaX Mobile is a portable EDXRF analyzer for testing a wide variety of materials. The sampling tray, similar to a benchtop instrument, allows the convenient placement of XRF sample cups. The high-resolution SDD detector and large measurement spot ensure a high count rate, crucial for quick detection of trace elements. The ElvaX Mobile is a perfect tool for testing soil and petrochemicals or any other applications where testing liquids and powders are required on site. The PDA integrated into the instrument has an intuitive interface as well as a bright, high-resolution screen. ElvaX Mobile can be synchronized with a desktop computer via USB, Wi-Fi or Bluetooth. The instrument is as light and easy to carry as an ordinary briefcase. All you need is a flat surface to put it on and it’s ready for work in seconds.
With advanced hardware and comprehensive software, the EvaX Basic offers the most precise and accurate analysis of materials
Dynamically Adaptive Shaping (DAS) DPP developed by Elvatech ensures operation of the ElvaX Mobile at the highest count rates
Thanks to the digital X-Ray source, automatic temperature and pressure correction, and automatic calibration adjustment, ElvaX Mobile offers long-life reproducibility of the analysis without the need to re-calibrate the system
Anode: W (Rh, Ag)
Voltage: 40 kV (50 kV)
Current: 200 uAmp
Power: 4 W (5 W)
5 position filter changer (option)
DPP: proprietary DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate
MCA: 4096 channels
Display: 4.3″
Connectivity: USB, Bluetooth, Wi-Fi, GPS
High resolution video camera (option)
Type: Si-PIN (optional SDD)
Area: 6 mm2 (25 mm2 for SDD)
Energy resolution: 165 eV @ Mn Kα (140 eV for SDD)
Dimensions: 380 x 270 x 160 mm
Weight: 5.5 kg
Operating system: Windows EC7
Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations

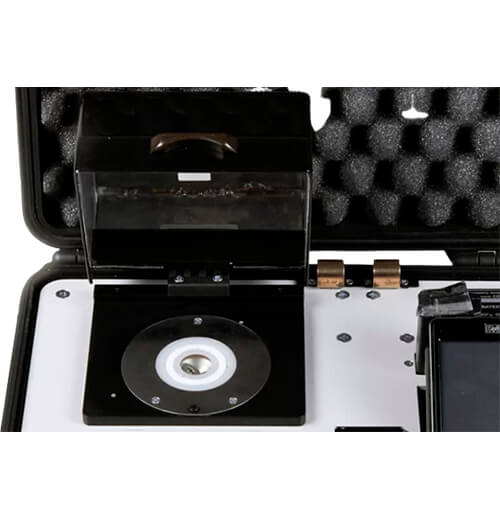

The sampling tray, similar to a benchtop instrument, allows the convenient placement of XRF sample cups

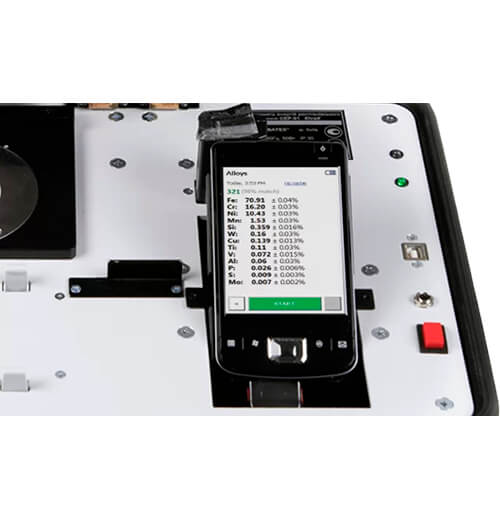

The PDA integrated into the instrument has an intuitive interface as well as a bright, high resolution screen.
