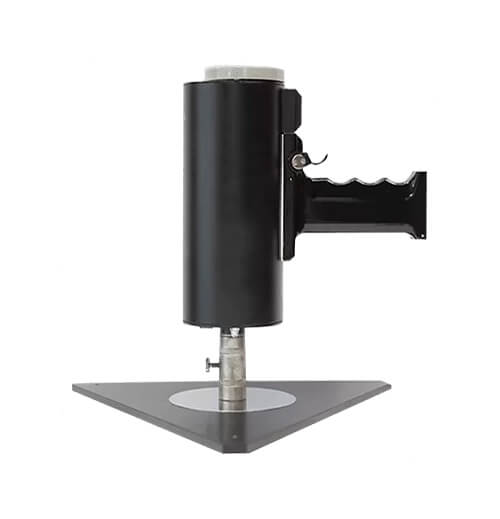

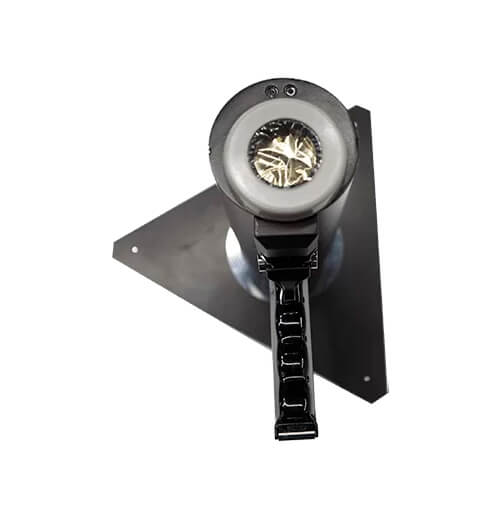

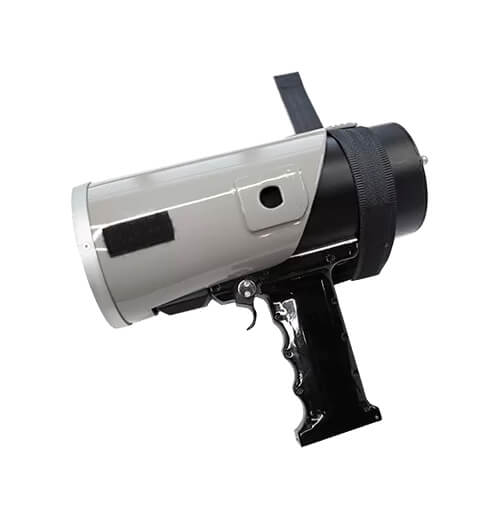

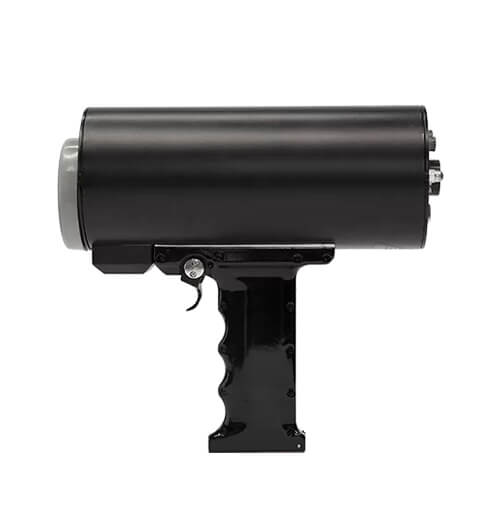

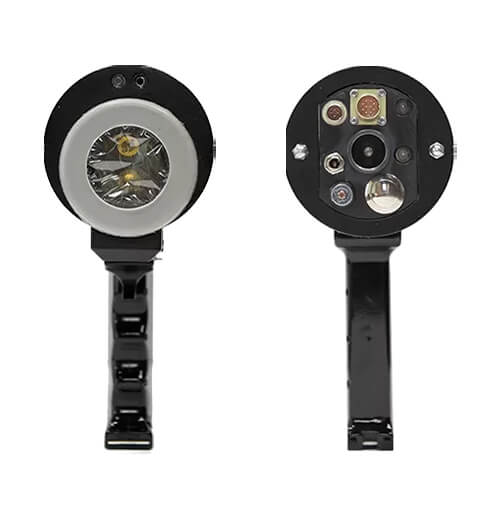

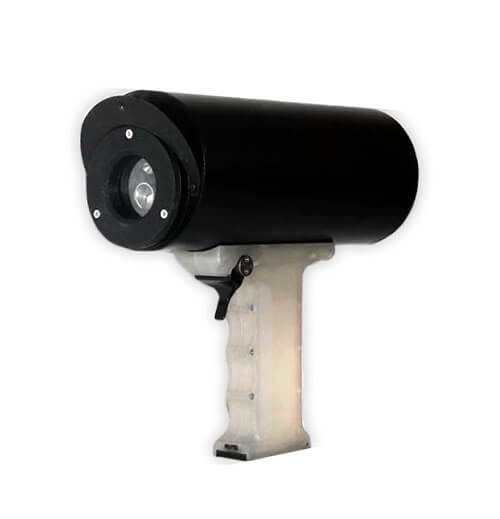

An instant on-site elemental analysis is one of the necessities of the modern mining industry. ElvaX Geo offers you accurate data and ease of operation during geo-exploration or quality assurance. The instrument is designed specifically for long non-stop convenient operation. The unique 800 mm2 analytical spot analysis increases averaging of inhomogeneous samples. A composite pole helps you keep a comfortable body position during operation and enables to analyze hard-to-reach places. This form factor allows for uninterrupted measurement during slow walking while measurement results are communicated to the operator through headphones. ElvaX Geo is operated through a PDA in a protective enclosure, which can be put underneath outer garment in case of extreme climatic conditions. The Li-Ion Battery can be hidden as well.
An instant on-site elemental analysis is one of the necessities of the modern mining industry. ElvaX Geo offers you accurate data and ease of operation during geo-exploration or quality assurance. The instrument is designed specifically for long non-stop convenient operation. The unique 800 mm2 analytical spot analysis increases averaging of inhomogeneous samples. A composite pole helps you keep a comfortable body position during operation and enables to analyze hard-to-reach places. This form factor allows for uninterrupted measurement during slow walking while measurement results are communicated to the operator through headphones. ElvaX Geo is operated through a PDA in a protective enclosure, which can be put underneath outer garment in case of extreme climatic conditions. The Li-Ion Battery can be hidden as well.
ElvaX Geo offers excellent repeatability and low limits of detection with a unique 800 mm2 analytical spot that greatly increases the averaging of inhomogeneous samples
The instrument is designed speciаlly for long non-stop convenient operation
ElvaX Geo software uses both the Fundamental Parameters and the Empirical Calibration Methods
ElvaX Geo software uses both the Fundamental Parameters and the Empirical Calibration Methods. Fundamental parameters analysis of unknown samples without empirical calibration is remarkably accurate. However, every instrument is calibrated for the basic mineral types with NIST or NIST traceable samples. ElvaX Geo demonstrates excellent limits of detection and repeatability. ElvaX Geo is capable of analyzing the whole range of minerals without prior calibration.
Anode: W
Voltage: 50 kV
Current: 200
Power: 10 W
Spot size: 800 mm2
DPP: proprietory DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate
MCA: 4096 channels
Display: 4.3″
Type: Fast SDD
Active area: 25 mm2 (option 70 mm2)
Energy resolution: <145 eV @ 5.9 keV
Count rate: 500 000 cps
Dimensions: 242 х 236 х 90 mm
Weight: 2 kg
Protection: IP67
Operating system: Windows EC7
Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations
A composite pole helps you keep a comfortable body position during operation and enables you to analyze hard-to-reach places.
This portable device delivered together with a case to protect it from vibrations, weather influence, and fallings.
