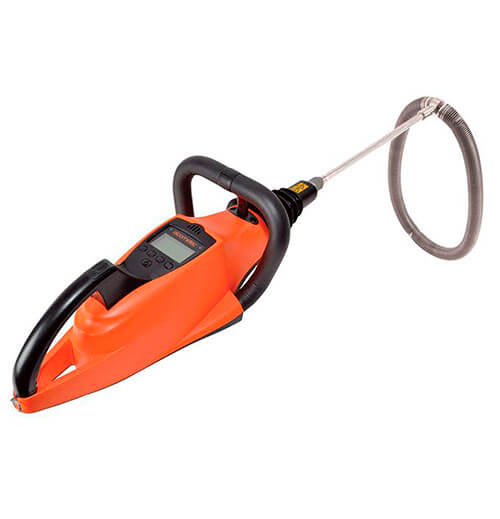

Elcometer 280 Pulsed DC Holiday Detector Inspection Kit

Coatings Coating Analysis Coating Inspection

by Elcometer

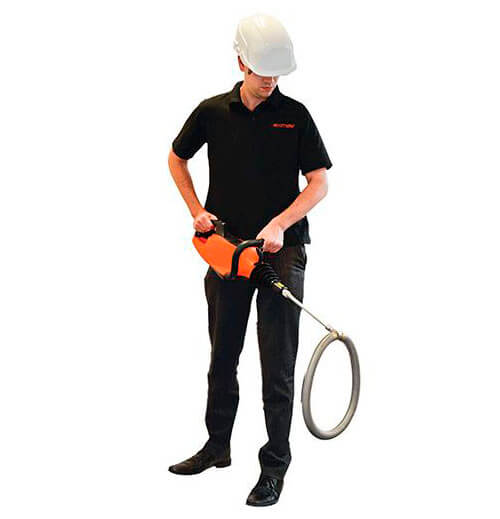

Using state of the art electronics, the Elcometer 280 allows users to inspect coatings – without connecting the earth return lead to the component substrate – ideal for inspecting large surfaces and pipelines.

The Elcometer 280 uses the high voltage pulsed DC technique to detect holidays in coatings – even if the coating is damp, dirty or slightly conductive.

From the two stage safety switch, bright LED’s and screen icons signifying when the high voltage is on, to the extended ribbing to protect the user from spark creep, the Elcometer 280 sets the standard for high voltage measurement safety.

Description

The Elcometer 280 uses the high voltage pulsed DC technique to detect holidays in coatings – even if the coating is damp, dirty or slightly conductive.

Technical Specification

Standards

Data Sheet

Technical Specification

Elcometer 280 Pulsed DC Holiday Detector Inspection Kit

Part Number	Description	Certificate
D280-T-KIT	Model T

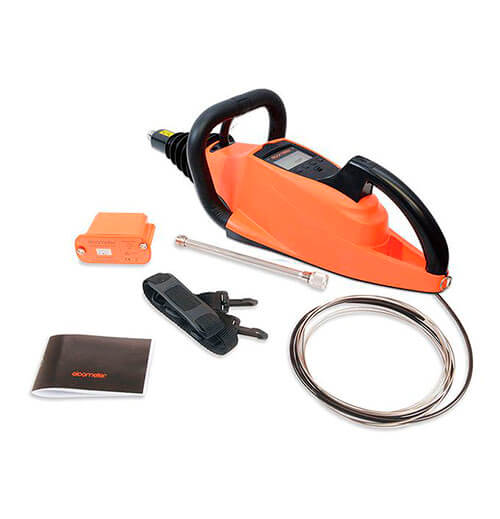

Packing List	Elcometer 280 Pulsed DC Holiday Detector Gauge (Model T), 5m (16’) trailing signal return lead, battery pack (2 supplied with Model T), battery charger with mains cables (UK, EUR & US), stainless steel rolling spring holder (supplied with Model T only), 250mm (9.8”) probe extension shaft, shoulder strap and operating instructions – packed in a lightweight, rugged, wheeled transit case

Optional Calibration Certificate available.

Standards

Elcometer 280 Pulsed DC Holiday Detector Inspection Kit

AS 3894.1, ANSI/AWWA C203, ANSI/AWWA C214, ASTM D4787, ASTM D5162, ISO 2746, ISO 29601, JIS G 3491, JIS G 3492, NACE RP0274,
NACE SP0188, NACE SP0490, NACE TM0186, NACE TM0384

Standards in grey have been superseded but are still recognised in some industries.
