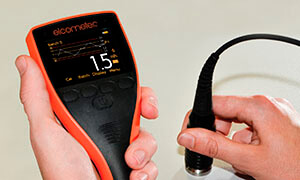

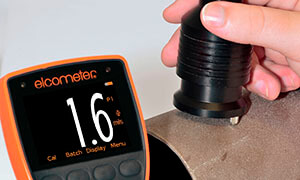

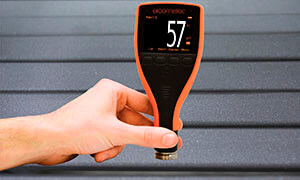

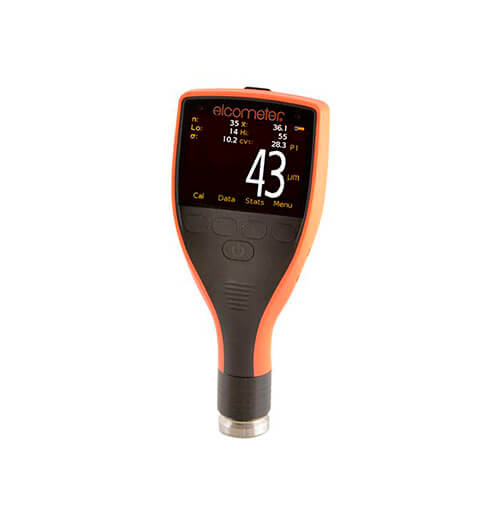

The Elcometer 224 Digital Surface Profile Gauge provides the very latest in surface profile measuring technology for measuring surface profile on either flat or curved surfaces.
The Elcometer 224 surface profile meter is available in two different models: Model B and Model T. Each surface profile meter provides the user with increasing functionality – from the entry level Elcometer 224 DModel B Surface Profile Gauge, to the top of the range Elcometer 224 Model T Surface Profile Gauge, with memory, alpha-numeric batching and Bluetooth® communication.
The Elcometer 224 Digital Surface Profile Gauge provides the very latest in surface profile measuring technology for measuring surface profile on either flat or curved surfaces.
The Elcometer 224 surface profile meter is available in two different models: Model B and Model T. Each surface profile meter provides the user with increasing functionality – from the entry level Elcometer 224 DModel B Surface Profile Gauge, to the top of the range Elcometer 224 Model T Surface Profile Gauge, with memory, alpha-numeric batching and Bluetooth® communication.

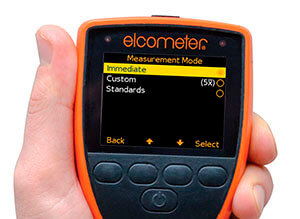

Whichever test method or Standard you are working to the Elcometer 224 Digital Surface Profile Gauge has a range of easy to use Measurement Modes.

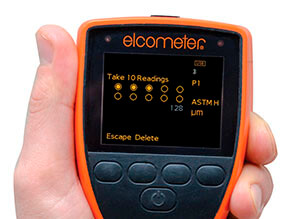

In Custom mode, simply select to take either 5 or 10 profile readings per measurement then specify either the average, highest or lowest measurement of each set of readings to be displayed and saved into the batch memory4.

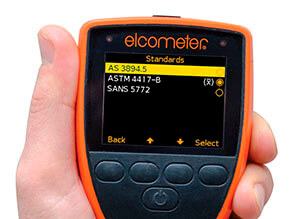

Select the International Standard you are working to and the Elcometer 224 Digital Surface Profile Gauge will automatically set the data collection method accordingly. When selecting ASTM D 4417, you can even choose if the gauge stores the average or highest reading as the measurement.

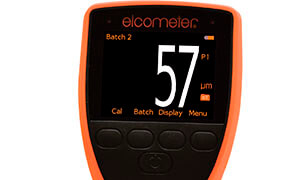

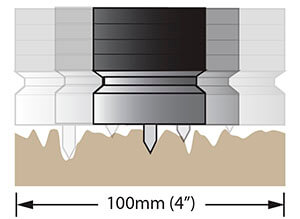

Take individual peak-to-valley measurements and save into the batch memory4. The Elcometer 224 Surface Profile Meter automatically calculates and displays key statistics whilst you’re inspecting, and you can set limits so the gauge will alarm whenever the reading is outside a predefined acceptable range.

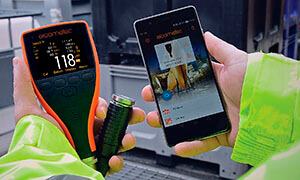

Instantly transfer readings, statistics, and limits; via USB or Bluetooth®; to your PC or mobile device, using ElcoMaster® or your own software application, creating professional inspection reports in minutes.
Fast, accurate and very user friendly, the Elcometer 224 Surface Profile Gauge is available with or without memory and Bluetooth®.
1Compatible with iPod, iPhone and iPad.
2 Applicable Patents: GB2505193, US9261345
3The Elcometer 224 Surface Profile Gauge is supplied with a 1 year warranty against manufacturing defects. The warranty can be extended free of charge to 2 years within 60 days of purchase
4 Model T only
ASTM D 4417-B, SANS 5772, SSPC PA 17, US Navy NSI 009-32, US Navy PPI 63101-000
| Part Number | Description | Certificate | |
| Integral Gauge | Separate Gauge1 | ||

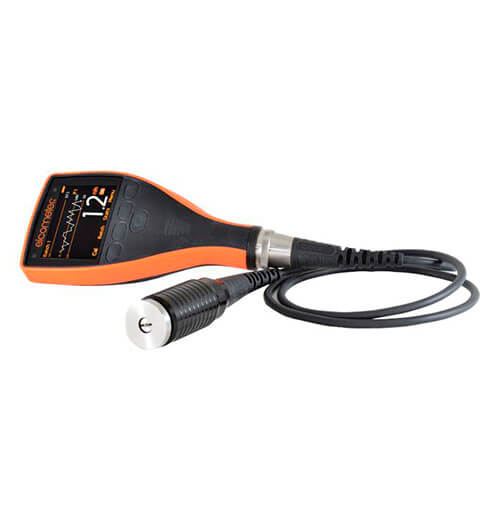

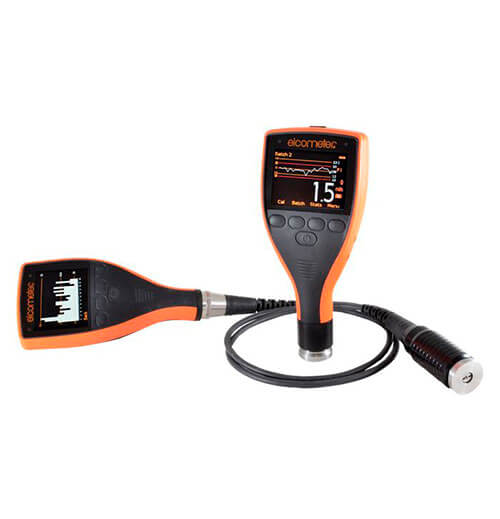

| E224C-BI | E224C-BS | Elcometer 224 Model B Integral Digital Surface Profile Gauge |
 |
| E224C-TI | E224C-TS | Elcometer 224 Model T Integral Digital Surface Profile Gauge |
|
| Display Information | 2.4” (6cm) QVGA colour TFT display, 320 x 240 pixels | ||
| Battery Type | 2 x AA batteries, rechargeable batteries can also be used | ||
| Battery Life | Approximately 24 hours of continuous use at 1 reading per second2 | ||
| Minimum Headroom | Integral: 185mm (7.3”) Separate: See probe technical specification |
||
| Dimensions | Integral: 168 x 73 x 37mm (5.61 x 2.87 x 1.46”) Separate: 141 x 73 x 37mm (5.55 x 2.87 x 1.46”) |
||
| Weight | Integral Gauge (including batteries): 218g (7.69oz) Separate Gauge (including batteries): 161g (5.68oz) |
||
| Measurement Range | 0-500μm (0-20mils) | ||
| Probe Tip | Tungsten carbide tip 60° angle | ||
| Tip Radius | 50μm (2mil) | ||
| Operating Temperature | -10 to 50°C (14 to 122°F) | ||
| Storage Temperature | -10 to 60°C (14 to 140°F) | ||
| Accuracy3 | ±5% or ±5μm (±0.2mil) | ||
| Resolution | 1μm (0.1mil); | ||
| Packing List | Elcometer 224 Digital Surface Profile Gauge, glass zero tile4, 2 x calibration foils4, wrist harness, plastic transit case (T), protective case, screen protector, probe protection cap4, 2 x AA batteries, test certificate, operating instructions, USB cable (T) & ElcoMaster® software (T) | ||
1Probes are supplied separately
2Using default settings & lithium batteries, alkaline or rechargeable batteries may differ
3 Whichever is the greater
4 For separate gauges, the test foils, glass zero tile and probe protection cap are supplied with the separate probe.
| Model B | Model T | |
| Fast, accurate reading rate; 50+ readings per minute1 |
|
|
| Repeatable & reproducible measurements |
|
|
| Easy to use menu structure; in 30+ languages |
|
|
| Tough, impact, waterproof & dust resistant; equivalent to IP64 |
|
|
| Bright colour screen; with permanent backlight |
|
|
| Scratch and solvent resistant display; 2.4″ (6cm) TFT |
|
|
| Large positive feedback buttons |
|
|
| Flat & convex surfaces2 |
|
|
| USB power supply; via PC |
|
|
| Test certificate |
|
|
| 2 year gauge warranty3 |
|
|
| Automatic rotating display; 0°, 90°, 180° & 270° |
|
|
| Ambient light sensor; with adjustable auto brightness |
|
|
| Emergency Light Mode |
|
|
| Gauge software updates4; via ElcoMaster® software |
|
|
Data Output |
|
|
| USB; to computer |
|
|
| Bluetooth®: to computer, Android™ & iOS5 devices |
|
|
On screen statistics |
|
|
| Number of readings, η; Mean (average), x ; Standard deviation, σ; Highest reading, Hi; Lowest reading, Lo; Coefficient of variation, CV% |
|
|
| High & low limits; definable audible & visual alarms |
|
|
| Number above high limit; |
|
|
| Number below low limit; |
|
|
| ElcoMaster® software & USB cable |
|
|
| Date and time stamp for each reading |
|
|
| Replaceable screen protectors |
|
|
| Protective case |
|
|
| Plastic transit case |
|
|
| On screen calibration instructions; in 30+ languages |
|
|
| Measurement Range |
0-500μm (0-20mils)
|
0-500μm (0-20mils)
|
| Number of batches |
|
2,500
|
| Gauge memory; number of readings |
Last 5
|
150,000
|
| Delete last reading 6 |
|
|
| Limits; user definable audible & visual pass/fail warnings |
|
|
| Gauge (g) or gauge & batch specific (gb) limits |
|
gb
|
| Batch types; normal, counted average |
|
|
| Review, clear & delete batches |
|
|
| Copy batches and calibration settings |
|
|
| Alpha-numeric batch names; user definable on the gauge |
|
|
| Fixed Batch Size Mode; with batch linking |
|
|
| Trend graph; last 20 readings |
|
|
| Review batch graph |
|
