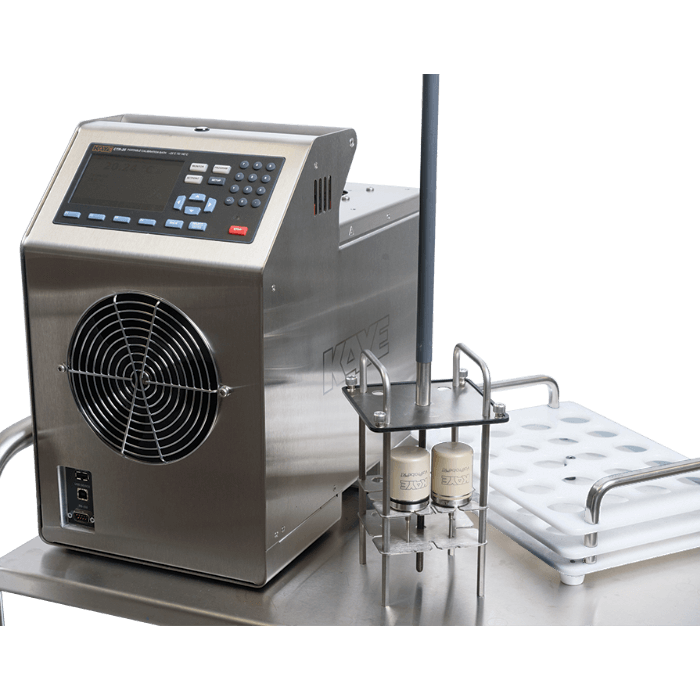

Portable Liquid Calibration Bath from -25°C to 140°C
The Kaye CTR-25 is the latest addition to our complete line of advanced calibration dry blocks and baths designed to address the specific needs of thermal Validation. The CTR-25 was designed to address portability, capacity, speed and accuracy requirements not normally found in competitive liquid baths.
The CTR-25 is ideally suited for verifications of up to 10 Kaye ValProbe or ValProbe RT Loggers as well as various sized process sensors. Onboard firmware enables automatic real-time verification of RT (real-time ) ValProbe Loggers or manual verifications of standard ValProbe loggers. Having a portable, rugged, accurate liquid bath allows customer to easily perform periodic verifications of their Loggers which greatly minimizes risk associated with waiting for yearly factory calibrations.
Portable Liquid Calibration Bath from -25°C to 140°C
The Kaye CTR-25 is the latest addition to our complete line of advanced calibration dry blocks and baths designed to address the specific needs of thermal Validation. The CTR-25 was designed to address portability, capacity, speed and accuracy requirements not normally found in competitive liquid baths.
The CTR-25 is ideally suited for verifications of up to 10 Kaye ValProbe or ValProbe RT Loggers as well as various sized process sensors. Onboard firmware enables automatic real-time verification of RT (real-time ) ValProbe Loggers or manual verifications of standard ValProbe loggers. Having a portable, rugged, accurate liquid bath allows customer to easily perform periodic verifications of their Loggers which greatly minimizes risk associated with waiting for yearly factory calibrations.
Firmware supports automatic/manual verifications of ValProbe Loggers
Comes with a special designed fixture to easily hold 10 loggers and one IRTD
Compact, portable design for easy carrying or shipping (20kg/44lbs)
Compressor free unit – operates with modern Peltier Technology
Stainless steel casing withstands harsh sterilizing chemicals
Universal Power Supply 110/ 240 VAC – 50/60 Hz
Large front panel display with intuitive controls
Large 2.5l tank with up to 6” (15,24cm) depth can accommodate wide range of sensor type
The CTR-25’s broad temperature range allows it to be used for calibration or verification of validation or process sensors for a wide variety of applications:
steam-in-place process (122 °C to 140 °C)
autoclave sterilization (121 °C to 135 °C)
pharmaceutical bioreactors (-10 °C to 100 °C)
storage freezers (-25 °C)
