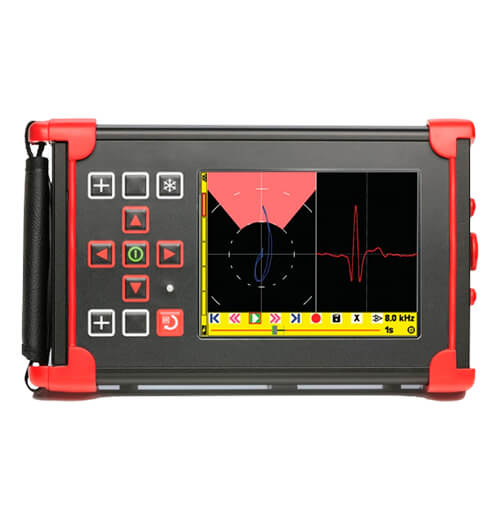

Available in Single and Dual Frequency models the AeroCheck Flaw Detectors deliver the best in Eddy Current performance, with rotary inspection capabilities as standard, together with variety of advanced features.
The AeroCheck 2 is the single frequency EC flaw detector, 10Hz-20MHz, offering all the advanced features, including Loop, Guides and Trace, plus Rotary, but without Conductivity capability.
The AeroCheck+ offers the end user dual frequency capability, with an excellent Frequency Range from 10Hz to 12.8MHz, with Rotary Drive Capabilities as standard, but in addition offers Auto-mix and Conductivity Measurement.
The AeroCheck Series can be used with all reflection, bridge and absolute probes from all manufacturers and uses industry standard 12-Way Lemo and Co-axial Lemo 00 connectors, reducing the need to use adapters.
Designed and manufactured in the UK, out instruments a backed by the ETher NDE promise of outstanding customer service and technology that is both reliable and advanced.
Available in Single and Dual Frequency models the AeroCheck Flaw Detectors deliver the best in Eddy Current performance, with rotary inspection capabilities as standard, together with variety of advanced features.
Single & Dual Frequency models available
Rotary Drive capabilities as standard
User friendly interface, single level menu system, “quick function” sidebar
Large Daylight readable display 145mm (5.7”)
Rugged metal housing yet Lightweight 1.2kg (2.6lbs)
Built-in “flip” function works equally well for left or right-handed users
Up to 10 hours battery life (pencil probe), 7 hours (rotary drive)
3 year standard warranty
Optional EThercover extending warranty to 6 years.
Auto-Mix
Simplifies the sometimes complex procedure of mixing two different frequency signals, which can be achieved on the AeroCheck+ through a series of easy steps. Setting the Auto-mix itself is as simple as pressing one key.
Innovative “Loop” Feature
“Loop” is a convenient way of capturing a live repetitive signal and then adjusting the instrument settings especially Phase, Gain and Filters in order to simplify the task of optimizing the parameters.
“Guides” Feature
“Guides” allow the user to display a slide show that can be created easily with commonly used desktop software. The benefit of this feature is that instructions, tutorials and procedures for the inspection can be added to the AeroCheck+ very quickly and the NDT inspector can easily switch between the Inspection itself and the “Guides” while performing a live test.
Trace
The trace function allows a reference waveform to be stored on the screen and appears along with the graticule behind the live spot. This allows the operator to readily compare the live data with the reference calibration.
Operator defined “soft keys”
There are four soft key positions for operator selectable icons for frequently used functions and a fifth position for the last menu function used. Each saved instrument setting can be associated with a unique, one press set of quick access functions. There are also two front panel hard keys that can also be easily programmed for rapid one press access to instrument functions
The AeroCheck 2 is the single frequency EC flaw detector, 10Hz-20MHz, offering all the advanced features, including Loop, Guides and Trace, plus Rotary, but without Conductivity capability.
The AeroCheck+ offers the end user dual frequency capability, with an excellent Frequency Range from 10Hz to 12.8MHz, with Rotary Drive Capabilities as standard, but in addition offers Auto-mix and Conductivity Measurement.
The AeroCheck Series can be used with all reflection, bridge and absolute probes from all manufacturers and uses industry standard 12-Way Lemo and Co-axial Lemo 00 connectors, reducing the need to use adapters.
Designed and manufactured in the UK, out instruments a backed by the ETher NDE promise of outstanding customer service and technology that is both reliable and advanced.
| Part Number | Item |
|---|---|
| IAER002 | AeroCheck portable flaw detector, (AeroCheck+ Dual Frequency (20Hz-20MHz), Software + Manual on USB Stick |
| AWEL002 | Accessory, AeroCheck, Power Adapter + Input Plugs (UK, EU, US & Australia) |
| AWEL003 | Accessory, Adjustable Shoulder Strap, Padded with Quick-Release |
| AC006 | Accessory, Instrument Soft Carry Case |
| A090 | USB Cable, A to MIN B, 1 metre |
| 40449 | Quick Reference Card – AeroCheck |
| ALLCX-M02-015A | Accessory, Lead, Lemo 00 to Microdot, 1.5m (Absolute) |
| ALL12-L04-015R | Accessory, Lead, Lemo 12-Way – Lemo 4-Way (Reflection) |
| Part Number | Item |
|---|---|
| AER002 | Hard Transit Case (AeroCheck) |
| AAER004 | Protective Splash Proof Cover (WeldCheck / AeroCheck) |
| 40470 | Tripod Bracket – To fit 1/4″ Camera Tripod Mount with Male Screw (WeldCheck / AeroCheck / AeroCheck+) |
| AWEL006 | External, 8 x AA Battery Holder and On/Off Switch |
| AWEL007 | Wrist Strap |
| AWEL008 | In-car Power Adapter |
| ARD002 | Mercury (mini) Rotary Drive |
| ALL12-L04-015R | Accessory, Lead, Lemo 12-Way – Lemo 4-Way, 1.5m (Reflection) |
| ALL12-L04-015B | Lead, Lemo 12-Way – Lemo 4-Way, 1.5m (Bridge) |
| ALL12-L12-020M | Lead to connect Mercury (mini – ARD002) Rotary Drive. Length = 2 metres. 12 Way Lemo |
| ALL12-F08-020ETH | Adapter lead to connect Rohmann Rotary Drive MR3, SR1 and SR2. Length = 2 metre. 12 Way Lemo |
| ALLCX-M02-015A | Accessory, Lead, Lemo 00 to Microdot, 1.5m (Absolute) |
| ALLCX-B02-015A | Accessory, Lead. Lemo 00 to BNC, 1.5m (Absolute) |
